BMR 617: Introduction to Graphing in R

Roles of Variables

We've talked previously about types of variables:

Nominal
Ordinal
Interval
Ratio

and categorized these more crudely as

Categorical (C)
Quantitative (Q)

It's also important to identify the role of each variable, which we describe as being either an explanatory variable or a response variable.

Response Variables

In an experiment or study, a response variable is a variable of interest. It measures or classifies an outcome.

Explanatory Variables

In an experiment or study, an explanatory variable is a variable of which we believe may influence the value of a response variable.

Examples

Considering our mouse metabolic data, classify each of the variables according to their type and role:

Strain

Categorical Explanatory Variable

Quantitative Explanatory Variable

Categorical Response Variable

Quantitative Response Variable

Incorrect

We hypothesize that the metabolic variables of interest vary according to the mouse strain, so "which strain the mouse is" will (or may) affect (directly or indirectly) the value of the response variable(s).

Incorrect

Strain is either "B6" or "TH", which are categories, not quantitative measured values.

Correct

Diet

Categorical Explanatory Variable

Quantitative Explanatory Variable

Categorical Response Variable

Quantitative Response Variable

Incorrect

We hypothesize that the metabolic variables of interest vary according to the diet the mouse was fed, so "Diet" will (or may) affect (directly or indirectly) the value of the response variable(s).

Incorrect

Diet is either "Chow", "HF" or "LF", which are categories, not quantitative measured values.

Correct

Cholesterol

Categorical Explanatory Variable

Quantitative Explanatory Variable

Categorical Response Variable

Quantitative Response Variable

Incorrect

Cholesterol is an outcome value of interest in the experiment, so it is a response variable.

Incorrect

Cholesterol is a measured value (in mg/dl), so it is quantitative.

Correct

Triglycerides (TG)

Categorical Explanatory Variable

Quantitative Explanatory Variable

Categorical Response Variable

Quantitative Response Variable

Incorrect

TG is an outcome value of interest in the experiment, so it is a response variable.

Incorrect

TG is a measured value (in mg/dl), so it is quantitative.

Correct

Fat Mass

Categorical Explanatory Variable

Quantitative Explanatory Variable

Categorical Response Variable

Quantitative Response Variable

Incorrect

Fat Mass is an outcome value of interest in the experiment, so it is a response variable.

Incorrect

Fat Mass is a measured value (in grams), so it is quantitative.

Correct

Graphing for the C-Q case

Start RStudio, load the tidyverse library, and load up our usual data set:


    library(tidyverse)
    met<- read_csv("https://denvirlab.marshall.edu/BMR617-2021/data/TH-B6-metabolic.csv") %>%
  		separate(MouseID, sep="-", into=c("Strain","Diet","Id"))")

We'll start by graphing the Cholesterol against the Strain. Here our explanatory variable, Strain, is categorical and ourvresponse variable, Cholesterol, is quantitative. We refer to this as the "C-Q" case.

There are a few options for graphing in this case:

Bar charts. These are commonly used, but they are often too simplistic.
Box and whisker plots. These often provide a useful summary of the data.
Column scatter plots. These plot all the data points. They can be a good choice if there are a reasonably small number of points.
Violin plots. These are a little complex to understand, but can be useful for very large data sets.

Introduction to ggplot2

ggplot2 is a R package that is part of tidyverse. "gg" here stands for "Graphical Grammar". (The package is based around a highly sophisticated and well-researched theory of expressing graphical ideas in computer language.) The original ggplot library, which is now obsolete, was rewritten from scratch to fit into the tidyverse package (hence the "2" at the end).

If you have used graphical software such as Adobe Photoshop, you can think of graphs in ggplot as being like "layers". You always start with a ggplot object, which is the base layer of the graph, and then add "geometries" on top of it.

The ggplot function requires at least two inputs: a data table containing the data to be plot, and an "aesthetics" object. At a minimum, the aesthetics object needs to specify which variables will represent each axis.

Usually (though not always), the x-axis will represent an explanatory variable, and the y-axis will represent the response variable. An aesthetics object is created using the aes() function. So we will need:


    ggplot(met, aes(x=Strain, y=Cholesterol))

Try this. What do you get? Why?

In the previous example, we only displayed the base of the graph. We need to add a "geometry", or a "layer", determining how to plot the data. Try


    ggplot(met, aes(x=Strain, y=Cholesterol)) + geom_boxplot()

In the "Help" tab (same region of RStudio as the plot), search for geom_boxplot. Can you figure out what the various parts of the box plot are plotting?

Try


    ggplot(met, aes(x=Strain, y=Cholesterol)) + geom_point()

This is called a "column scatter plot". Each point is plotted in a column, with one separate column for each x-value.

If there are too many points, they will overlap and we will lose some information. We can fix this, if needed, by adding "jitter" to the position of the points:


    ggplot(met, aes(x=Strain, y=Cholesterol)) + geom_point(position=position_jitter(width=0.1))

The width parameter here is in units of "one column"; the value 0.1 keeps the points fairly tightly confined to their column.

Barcharts are a little tricky in tidyverse. (I argue this is a good thing. I dislike bar charts and this disuades people from using them!) But we can create a bar chart with:


    ggplot(met, aes(x=Strain, y=Cholesterol)) + geom_bar(stat="summary", fun="mean")

By default, a bar chart will not use a y variable in the aesthetics, and will count the number of items in each category. We override this by saying we want to use a summary statistic (stat="summary") and specifying which function to use for that summary: (fun="mean").

I'll show you how to add error bars later in the course.

Which graph do you think is best? What are the pros and cons of each?

Here are some general principles for graphing:

A "typical value" (average) should always be apparent from the graph
The spread of the data should always be apparent from the graph
If possible, show all the data

Exploration

Create some graphs for Cholesterol against Diet.
Can you create a graph that shows both the boxplot and the individual points?

Using Color

Color should be used judiciously when graphing.

Various geometries recognize a color or fill parameter. Try


    ggplot(met, aes(x=Diet, y=Cholesterol)) + geom_boxplot(fill="#00b140")

The color specification here is a hexadecimal RGB value, which I'll let you Google if you like. It's the green used on Marshall University web sites. You can just use fill="green" if you want something simpler.

Showing multiple categories

A good use of color is to denote the value of another variable. To do this, we can specify the fill as an aesthetic, so it will vary with each value. For example:


    ggplot(met, aes(x=Diet, y=Cholesterol, fill=Strain)) + geom_boxplot()

Note that the colors here are chosen automatically. We can specify colors with


    ggplot(met, aes(x=Diet, y=Cholesterol, fill=Strain)) + geom_boxplot() + scale_fill_manual(values=c("red","blue"))

Problems with color

Using color well takes a lot of thought. What is wrong with

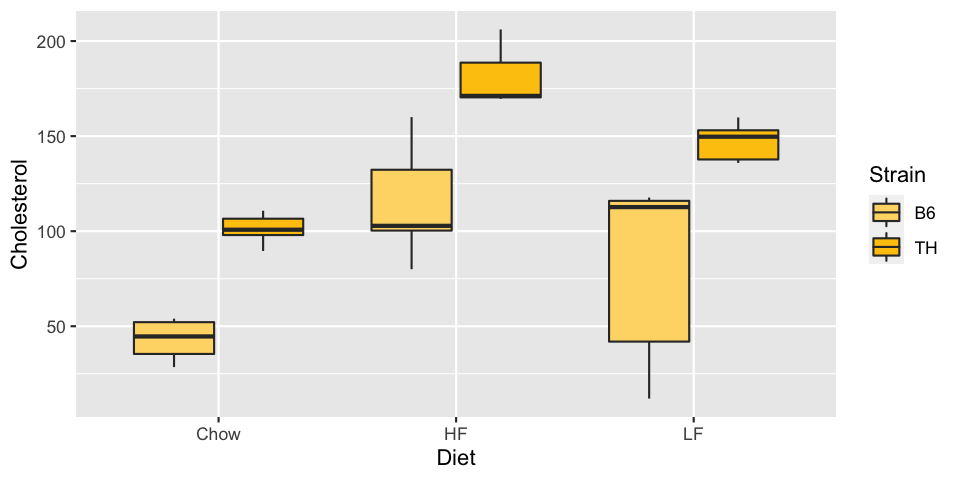

	ggplot(met, aes(x=Diet, y=Cholesterol, fill=Strain)) + geom_boxplot() +
	  scale_fill_manual(values=c("#FED976", "#FEC60C"))

What about

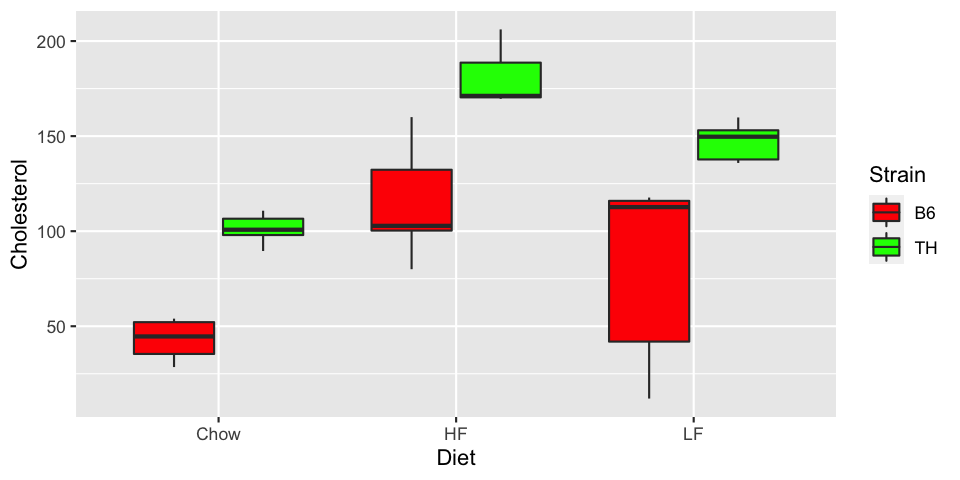

	ggplot(met, aes(x=Diet, y=Cholesterol, fill=Strain)) + geom_boxplot() +
	  scale_fill_manual(values=c("red", "green"))

To about 5% of the population, the second graph looks very much like the first. Avoid red and green as contrasts. There are mechanisms in R to choose colors automatically in a way that is friendly to color-blind people. We may look at these in more detail later in the course.

There are other subtle pitfalls with choosing color. Consider this graph:

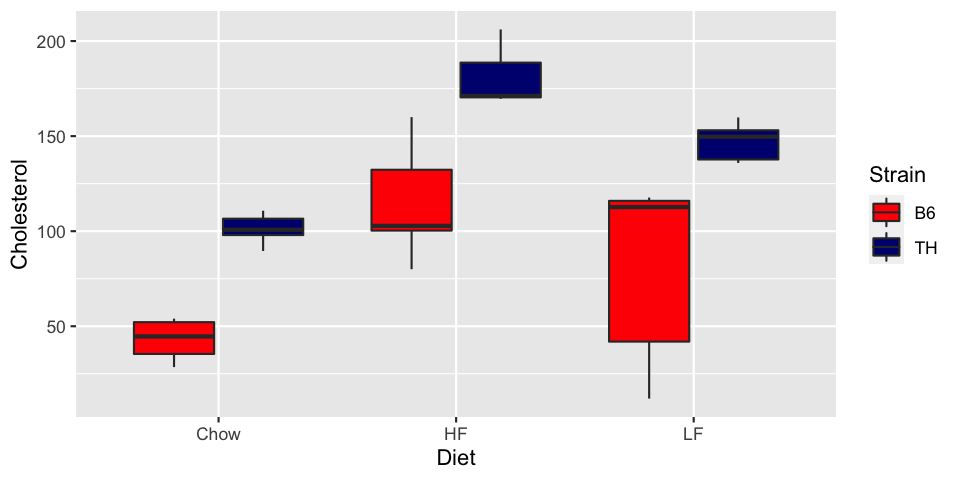

	ggplot(met, aes(x=Diet, y=Cholesterol, fill=Strain)) + geom_boxplot() +
	  scale_fill_manual(values=c("red", "navy"))

The default colors in R are a good place to start. They tend to avoid issues to do with varying intensity, color-blindness, and others. If you need to change the colors, do so with care.

Putting it all together

We'll finish by plotting the box plots by diet, colored by strain, and with the points overlaid.

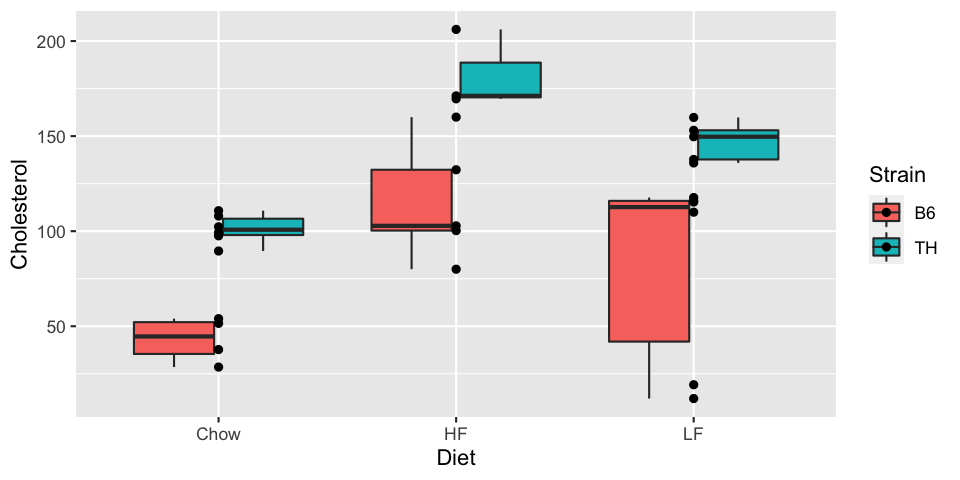

Doing this naïvely results in the points in a single column for each Diet:


	ggplot(met, aes(x=Diet, y=Cholesterol, fill=Strain)) + geom_boxplot() + geom_point()

To fix this, we can specify the position of the points as position_dodge. This takes a width parameter, and the value 0.75 will line them up over the box plots:


	ggplot(met, aes(x=Diet, y=Cholesterol, fill=Strain)) + geom_boxplot() +
	    geom_point(position=position_dodge(width=0.75))

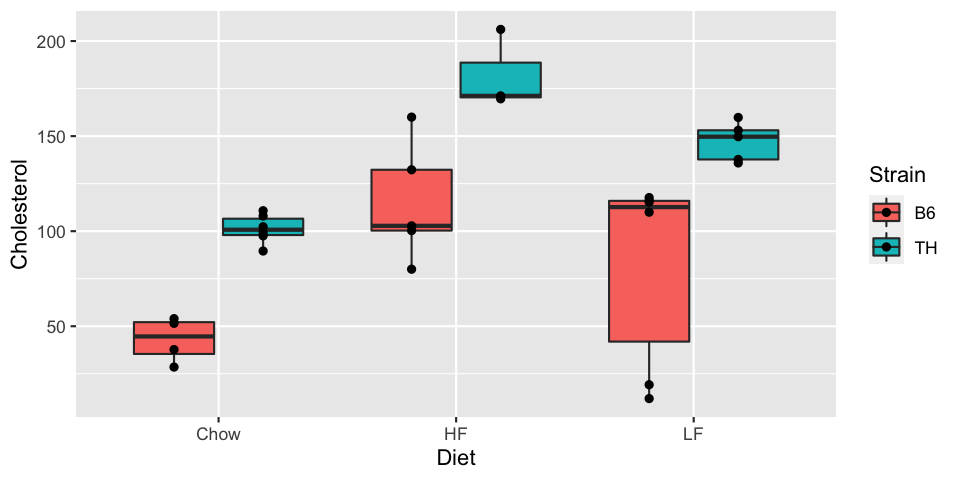

The position function position_jitterdodge does both: it "dodges" (points line up with the boxes) and adds jitter. We can specify the width for each:


	ggplot(met, aes(x=Diet, y=Cholesterol, fill=Strain)) + geom_boxplot() +
	  geom_point(position=position_jitterdodge(jitter.width = 0.1, dodge.width = 0.75))
